Vaccum Tray Dryer

    Manufacturer and Supplier of UNIVAC – Vaccum tray dryer

    • General Description
    • Optional features
    • Applications
    • Specification

    General Description:

    S.B. Panchal & Co’s “UNIVAC” series of vacuum drying system consists of drying oven with a heating system, vapor condensing system, and a vacuum pump assembly designed specifically for drying a particular product and to achieve the desired objective for which product is dried under vacuum.

    Vacuum Drying is ideally suited for pharmaceutical industry where products cannot be exposed to very high temperatures. These may include biotechnology products or pharmaceutical intermediates.

    Extremely low moisture/solvent content can be achieved to meet residual solvent limits set by ICH.

    Expensive solvents can be recovered and recycled in the process.

    Potentially toxic materials can be safely dried in an enclosed vacuum environment and solvent can be safely condensed.

    Optional features:

    • Fike Explosion Flap
    • Flame proof controllers
    • Hot water/ Thermic fluid generation and recirculation system
    • Chilled water generation and circulation system (For Lab and Pilot model

    Applications:

    • Drying of sticky substance
    • Economical drying of pharmaceutical/ food/ Agrochemical products.

    Specification:

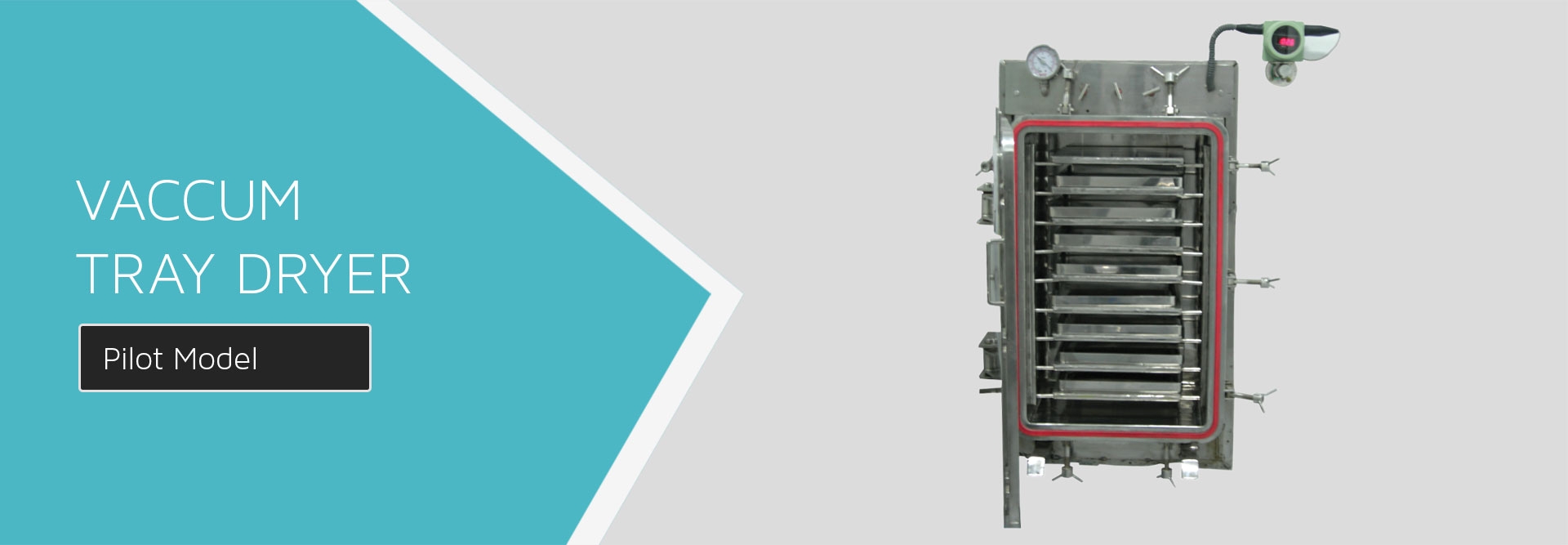

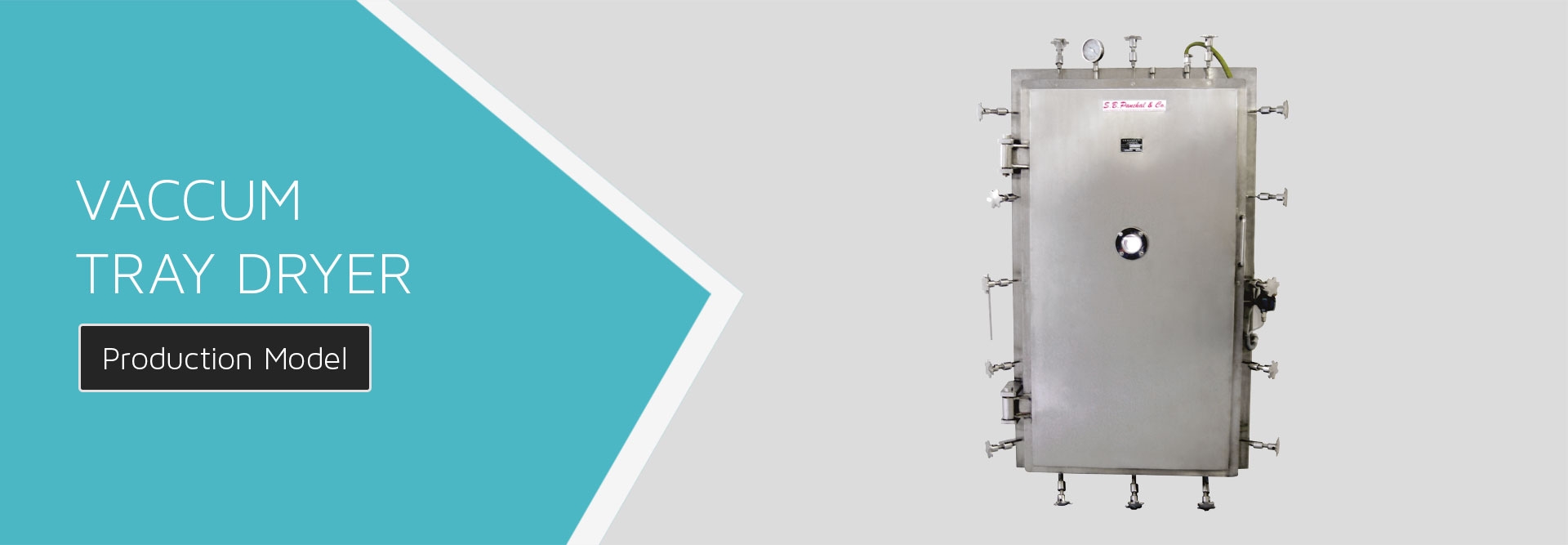

    Lab-model Pilot model Production model
    MODEL UNIVAC 3 UNIVAC 8 UNIVAC 12 UNIVAC 18 UNIVAC 24 UNIVAC 36 UNIVAC 48 UNIVAC 96 UNIVAC 192
    Capacity in Kilograms 5 14 42 63 84 126 168 336 672
    Capacity in Trays 3 8 12 18 24 36 48 96 192
    No of Shelves 3 8 6 6 8 12 12 16 32
    Dummy Shelf 1 1 1 1 1 1 1 1 1
    Trays per Shelf 1 1 2 3 3 3 4 6 8

    Loading per tray ( product bulk density 0.5 gm/cc ) = 3.5 Kgs
    Tray Size for 3 & 8 Tray VTD = 16 x 16 x 1”
    Tray Size for all other models = 16 x 32x 1.25”

    Contact us for more information on Supply and Manufacturing of Vaccum Tray Dryers or to discuss your requirements. Email us at sales@sbpanchal.com / hiren@sbpanchal.com

S.B.Panchal

S.B.Panchal & Co. has been consistently serving the pharmaceutical industry since 1947. Over the years we have continuously innovated our designs, so that we can serve our customers in a better way.
