Tray Dryer

    Manufacturer and Supplier of Tray dryers

    Tray dryer divided into two types:

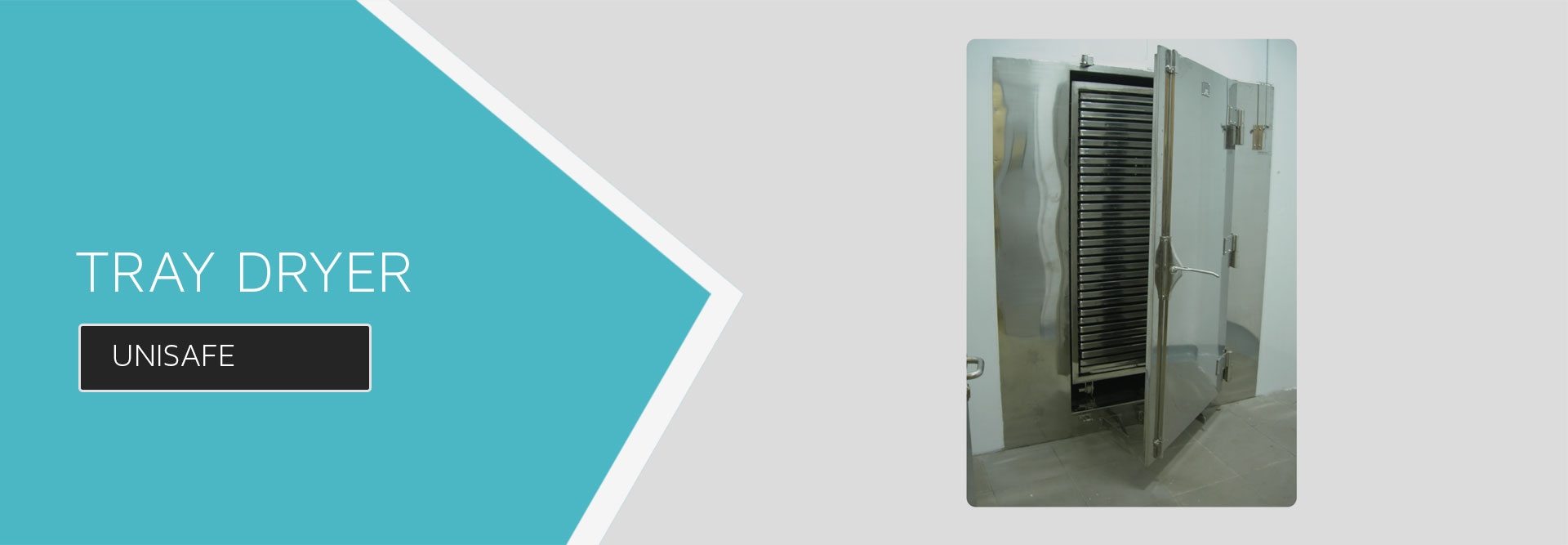

    UNISAFE:

    General Description:

    S.B. Panchal & Co’s Unisafe series of tray drying system are designed specifically keeping in mind the safety considerations required when drying solvents based pharmaceutical powders/granules or tablets which if not taken in consideration can lead to explosion.

    Though safety is a prime design consideration the system is very simple and complies easily with GMP norms critical for pharmaceutical manufacturing units.

    Unique air distribution system comprising of distribution baffles ensures that the drying quality is uniform throughout the height of the trolley. Flexible and modular air handling unit ensures that the installation of the machine is possible even in most trying site conditions.

    Safety is the utmost important design consideration in design of “UNISAFE” Dryers

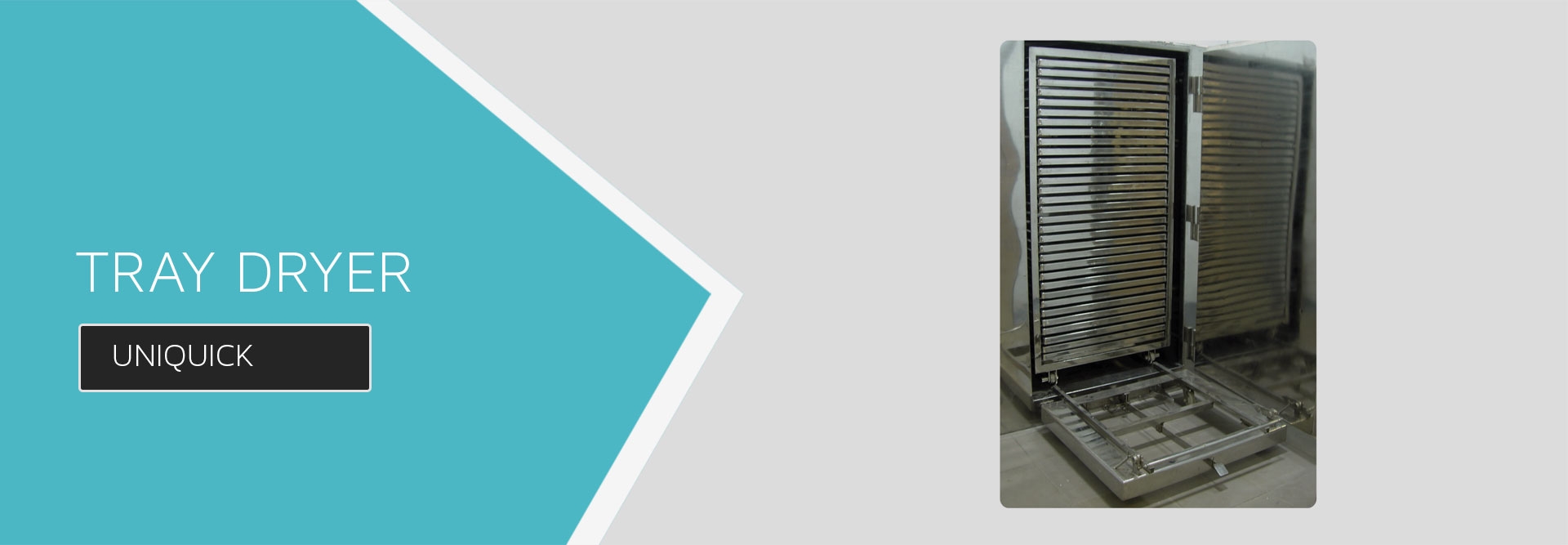

    UNIQUICK:

    General Description:

    S.B. Panchal & Co’s “UNIQUICK” series of tray drying system are designed specifically for very high moisture laden materials which take unduly long hours to dry typically beyond 12 to 16 hours.

    “UNI-QUICK’s” air conditioning system comprises of controlling the moisture content of the air re-circulating within the drying chamber.

    Dryer air within the chamber helps the product to leave the moisture fast, cutting down cycle times and giving better product quality even at lower drying temperatures.

    Flexible and modular air handling units ensure that the installation of the machine is possible even in the most trying site conditions.

    • Optional features
    • Applications
    • Specifications

    Optional features:

    • Fike Explosion Flap
    • Separate carriage trolley and load trolley
    • Flame proof controllers
    • 3 stage HEPA Filter.

    Applications:

    • Low temperature drying.
    • Drying of products containing explosive solvents vapours.
    • Drying of products sensitive to oxygen.
    • Drying to retain aroma/ flavour/ nutritional value of food products.

    Specification :

    Lab-model Pilot model Production model
    MODEL UNITRAY 4 UNITRAY 8 UNITRAY 12 UNITRAY 16 UNITRAY 24 UNITRAY 48 UNITRAY 96 UNITRAAY 192
    Capacity in Kilograms 5 14 42 63 84 168 336 672
    Capacity in Trays 4 8 12 16 24 48 96 192
    No of Trolleys 1 1 1 1 1 1 2 4
    Heating Load (K.W.) @ 150°C 1.5 3 4.5 4.5 7.5 12 21 40

    Loading per tray ( product bulk density 0.5 gm/cc ) = 3.5 Kgs
    Tray Size for 3 & 8 Tray VTD = 16 x 16 x 1”
    Tray Size for all other models = 16 x 32x 1.25”

    Contact us for more information on Supply and Manufacturing of Tray Dryers or to discuss your requirements. Email us at sales@sbpanchal.com / hiren@sbpanchal.com
