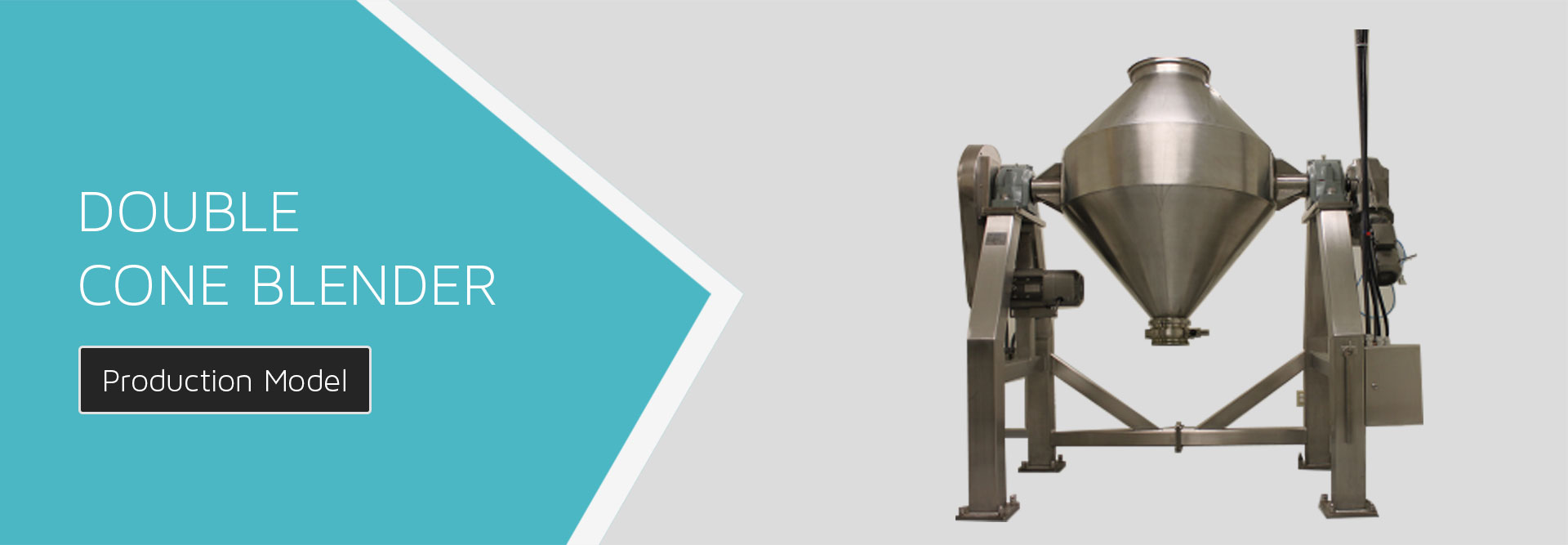

DOUBLE CONE BLENDER

    Manufacturer and Supplier of Double Cone Blender

    • General Description
    • Optional features
    • Specification

    General Description:

    Double Cone Blender is an efficient and versatile equipment for mixing of powder such as pharmaceutical excipients, various chemicals, food products homogeneously. With an effective volume for optimum homogeneity between 35-70% of gross volume.

    • cGMP construction with cladded polished S. S. Sheets with S.S 316 Contact parts and 304 Non-Contact parts
    • Conical shape and elongated plane at both ends enables uniform mixing and easy discharge
    • The cone is statically balanced which protects the gear box and motor from any excessive load
    • Powder is loaded into the cone through a wide opening and discharged through a butterfly or a Slide valve
    • Paddle type baffles can be provided on the shaft for better mixing, uniform blending and de-agglomeration

    Optional features:

    • ‘Slant’ design
    • Dust free bin charging system.
    • Flame proof electrical can be provided

    Specification:

    MODEL Gross working capacity (Ltrs) Working Capacity (Ltrs) Length (mm) Breadth (mm) Width (mm) Motor (H.P) Weight (kg)
    UNIBLENDER-DC- 75 75 53 1200 950 1650 2 700
    UNIBLENDER-DC-150 150 105 2000 1200 2250 3 700
    UNIBLENDER-DC-300 300 210 2100 1400 2350 5 800
    UNIBLENDER-DC-500 500 350 2350 1500 2500 7.5 1200
    UNIBLENDER-DC-1000 1000 700 2700 1800 3000 10 1800
    UNIBLENDER-DC-2000 2000 1400 3250 2400 3550 15 2500
    UNIBLENDER-DC-4000 4000 2800 4200 3000 4500 20 3000

    Contact us for more information on Supply and Manufacturing of Double Cone Blender Machine or to discuss your requirements. Email us at sales@sbpanchal.com / hiren@sbpanchal.com
